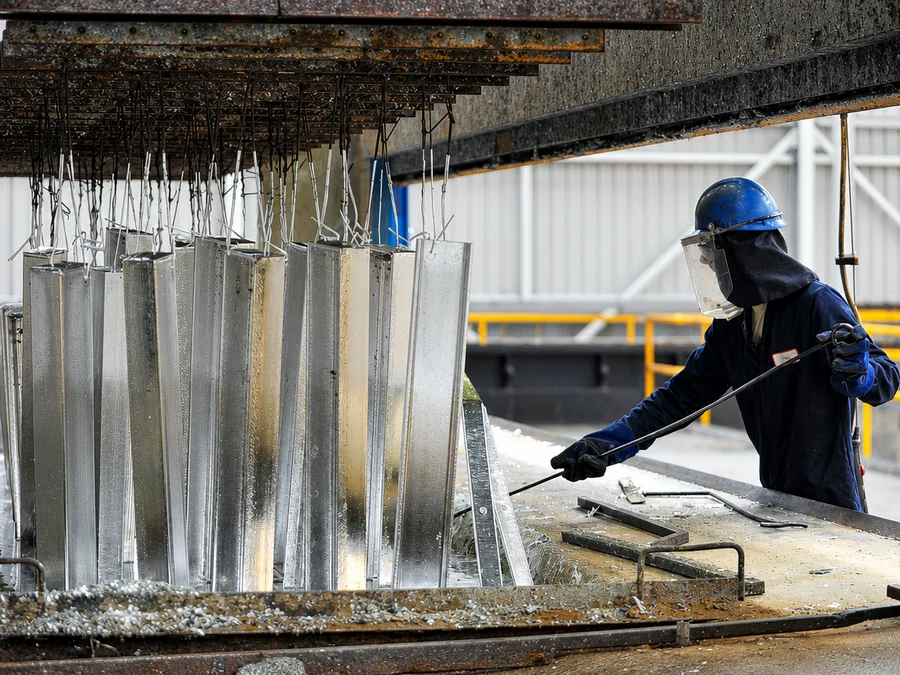

Hot-dip galvanized
Provide the required coating specification and inspection criteria.
PRODUCT SPECIFICATIONS
Start with the details.
Compare the catalog options with your project drawing, including beam connections and mounting requirements.
Product inventory supplied by TIANSHUN
| Beam profile | Thrie-beam |
|---|---|
| Overall beam length | 4,130 mm / 4,320 mm |
| Profile width × depth | 506 × 83 mm |
| Steel thickness | 2.75 mm / 3.00 mm |
| Catalog steel grades | Q235B / Q355B |
| Surface finish | Hot-dip galvanized / powder-coated |
| Other dimensions | Subject to technical review |
Final dimensions, materials, coating, and supply scope are confirmed in the quotation. A beam profile alone does not establish the performance of a complete barrier system.
Send your specificationTAKE A CLOSER LOOK

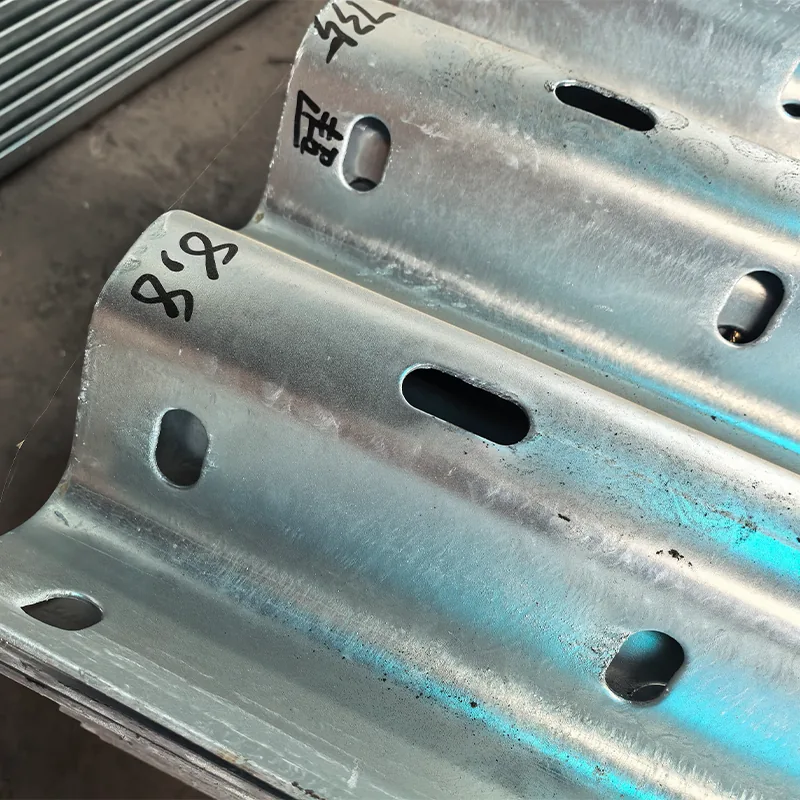

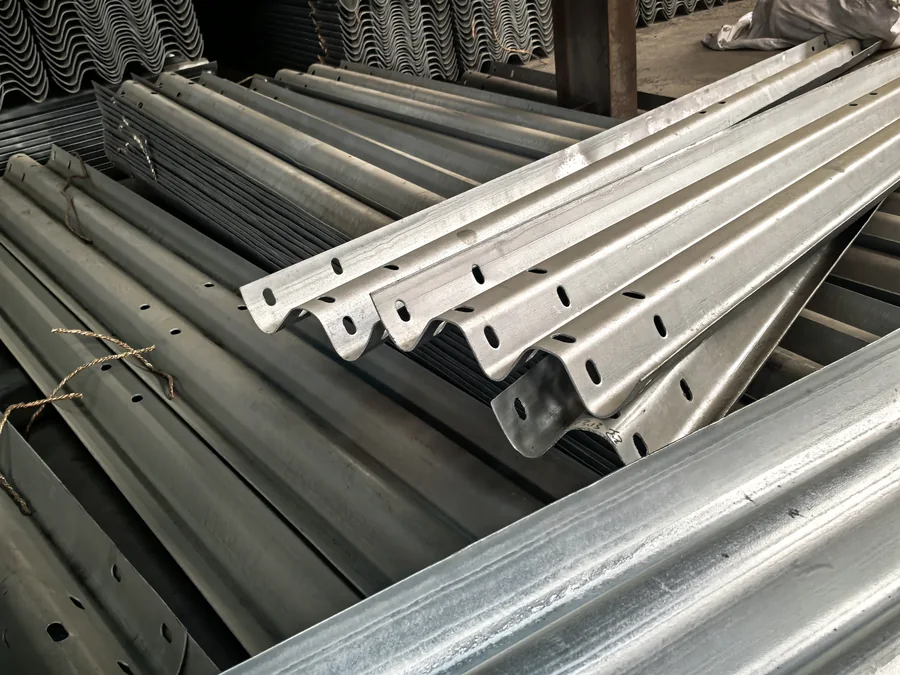

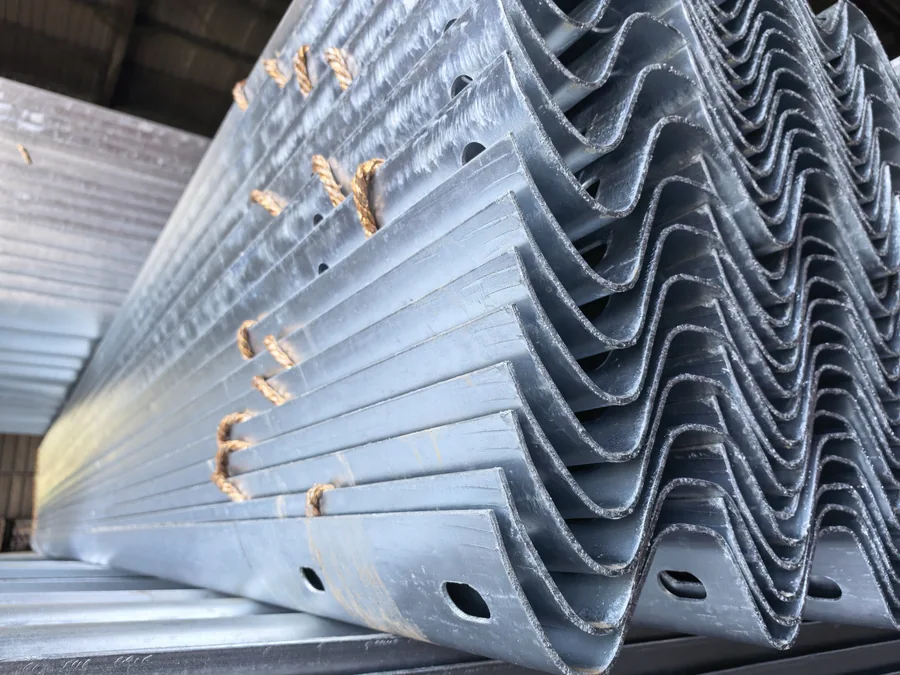

The details behind the profile.
Review the product shape, connections, and finish. Send measurements or drawings when matching an existing installation.
FINISH & CUSTOM REQUIREMENTS
Specify it your way.
Review the required finish, color, dimensions, and hole layout with your project documents.

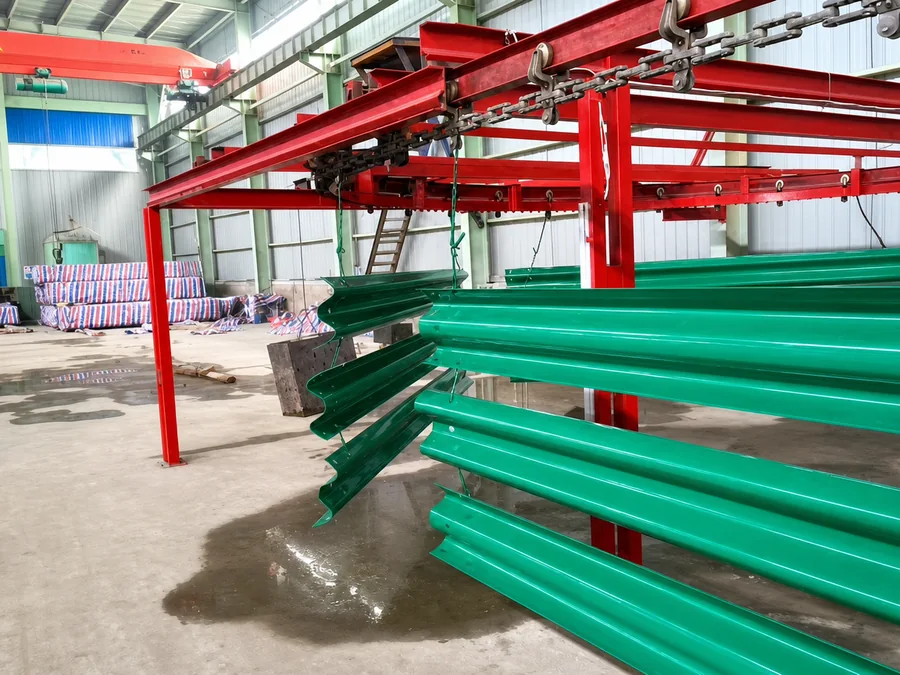

Powder-coated
Share the color, coating system, and finish requirements.
Have a different dimension or connection?
Send the beam length, thickness, hole positions, and project drawing for technical review.
BEYOND THE BEAM
Every part. Clearly specified.
Order individual components or define the complete supply scope. Match the details before you place the order.
Posts & spacers
Section, length, spacing, and mounting details.
Ends & connections
End treatments and connection requirements.
Fasteners
Sizes, grades, finishes, and quantities.
Road accessories
Reflective material and mounting details.
Beams only or a component package? Tell us what to include.
Send your procurement listDETAILS YOU CAN REVIEW
Make quality requirements clear.
Confirm dimensions, materials, surface finish, and inspection criteria. Specify the records your procurement process needs.
Steel thickness
Define the thickness and measurement criteria.
Dimensions & length
Confirm dimensions against the project drawing.
Coating thickness
Specify the coating and inspection requirements.
PRODUCT DOCUMENTATION
Request documents for your configuration.
Share the standard and documentation required for your project. Available documents are reviewed against the proposed product and configuration.
Request applicable documentsHighway guardrail
Test report coverThe supplied cover identifies the report. Review the full report and tested configuration before specifying performance.
Roller barrier
Test report coverThe supplied cover identifies the report. Review the full report and tested configuration before specifying performance.
Bridge guardrail
Test report coverThe supplied cover identifies the report. Review the full report and tested configuration before specifying performance.
ECM Voluntary Technical-Documentation Attestation
Voluntary documentation reviewAttestation 4Q260729.LTNQ076 records a voluntary review of technical documentation; it does not report product verification or replace an EC Declaration of Conformity.
ECM Attestation Annex I
Annex to the attestationAnnex I to 4Q260729.LTNQ076 lists product categories and must be read with the main attestation; it does not identify tested system configurations.
SGS Material and Coating Test Report Excerpt
Supplied page 2 of 3The supplied page 2 of 3 of report SHIN2607015216ML01_EN shows sample test results; sample identity and applicability to an order require confirmation from the full report.
Documents shown are the pages supplied by TIANSHUN. Test-report covers and the SGS excerpt do not replace full reports. Applicability must be checked against the quoted product and configuration.

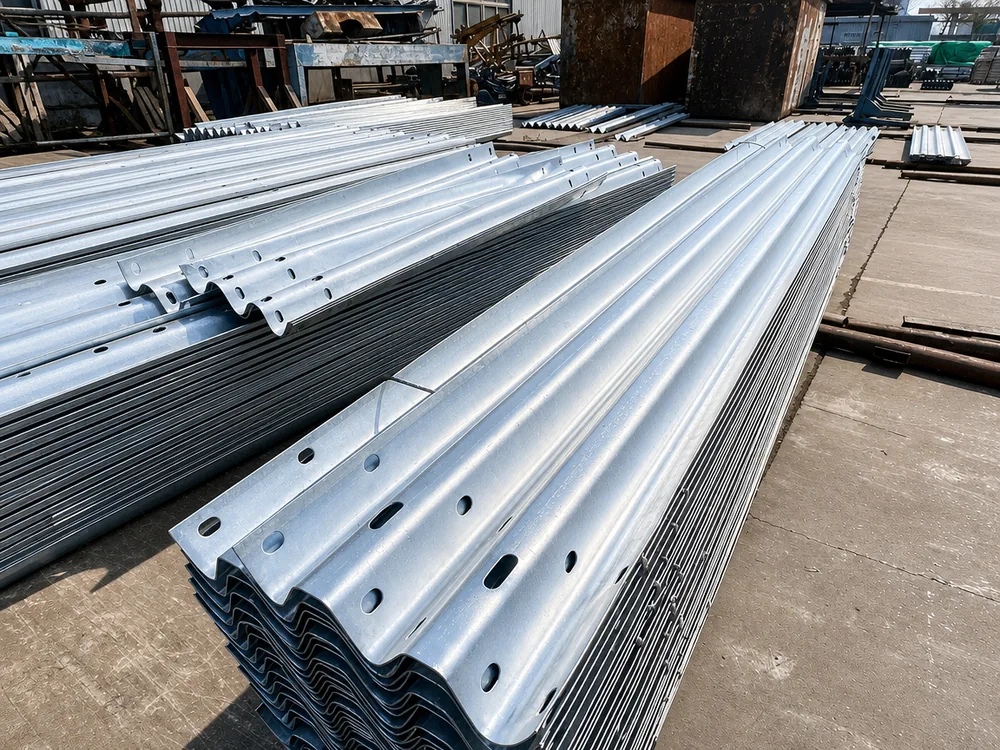

PREPARE FOR SHIPMENT
Packed around your order.
Confirm the quantity, packing list, destination port, and trade term together. Shipping and production schedules are reviewed with the quotation.
BEFORE YOU ORDER
A few useful
answers.
Have a specific requirement?
Let’s review it together.
01Can a Thrie-beam directly replace a W-beam?
Do not assume the products are interchangeable. Your project designer should confirm the required system, connections, and installation details.
02Can you review different beam dimensions?
Yes. Send the required dimensions, hole layout, and drawings for technical review.
03Are matching posts and spacers available?
Our catalog includes posts, spacers, terminals, and fasteners. The combination required for your order should be confirmed against the project drawing.
04What about bridge connections?
Provide the bridge interface and connection drawings. A bridge end component is not evidence of approval for a complete bridge barrier system.
05What should I send for pricing?
A product drawing or specification, quantity list, required documentation, and destination details are a useful starting point.
