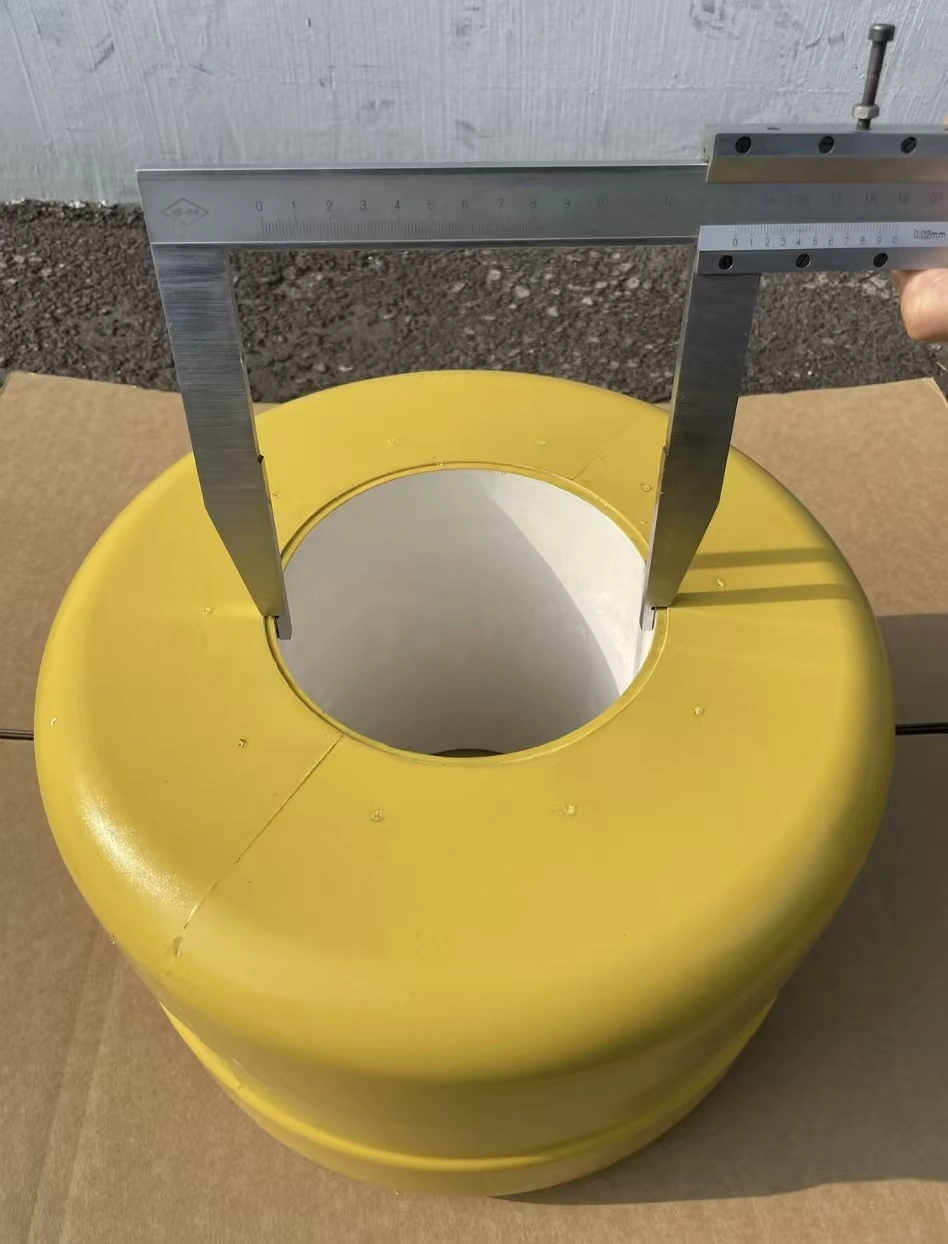

Inner bore measurement
Confirm the bore size against the specified post and assembly drawing.
PRODUCT SPECIFICATIONS
Start with the details.
The submitted assembly drawing describes the following reference configuration. It is separate from the older catalog configuration; components must not be mixed without review.

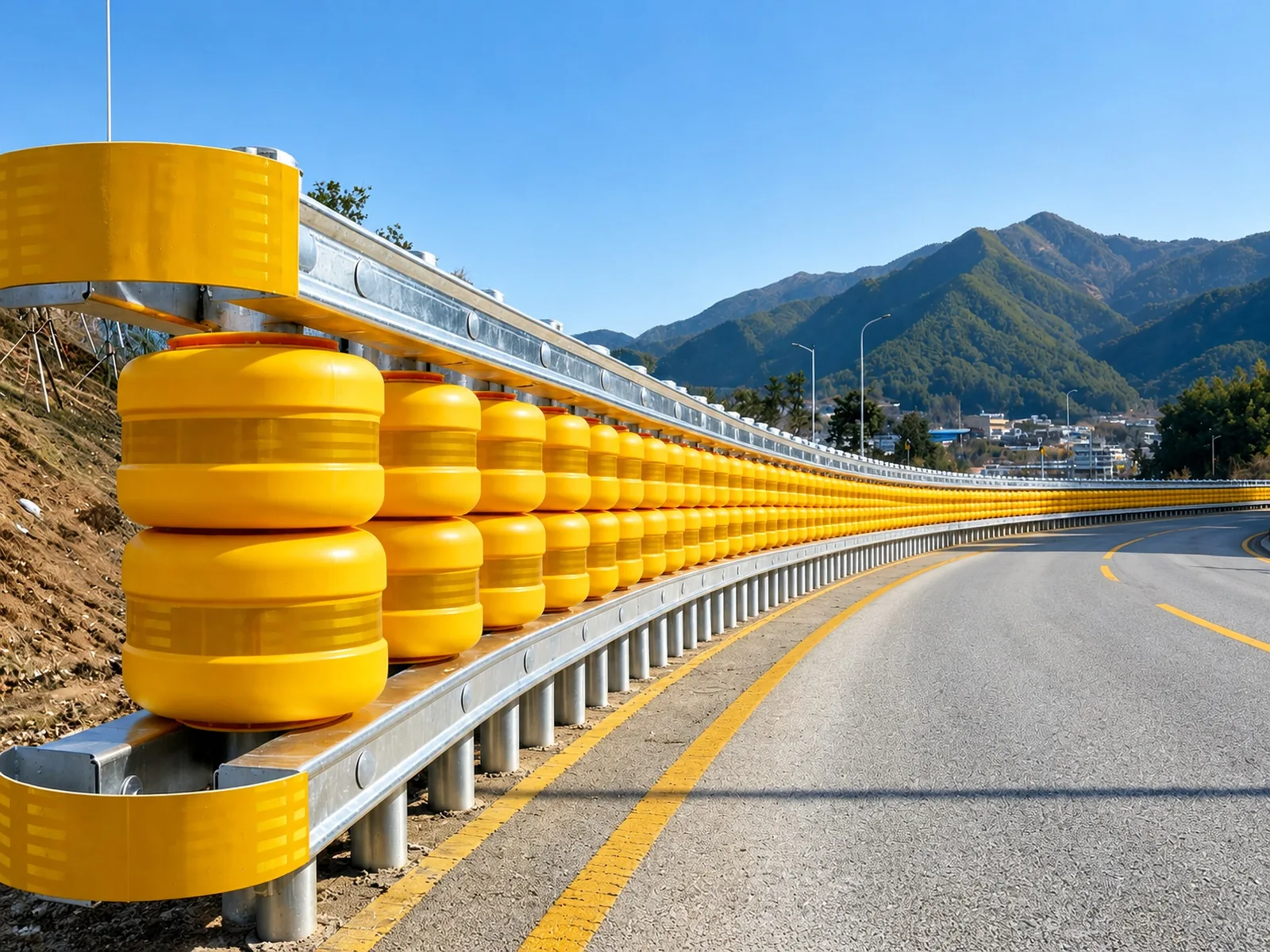

Roller barrier product scene · final configuration follows your project drawing
| Reference | Submitted 750 mm spacing drawing |
|---|---|
| Post spacing | 750 mm |
| Roller dimensions | Ø370 × 240 mm |
| Long post | Ø140 × 2,200 × 4.5 mm |
| Short post | Ø140 × 850 × 4.5 mm |
| Beam | 4,830 × 175 × 3.0 mm |
| Fasteners shown | M18 × 45 / M18 × 195 / M18 × 80 |
Drawing reference only. Confirm the final dimensions, roller material, mounting details, applicable documents, and quantities against the agreed project drawing. No crash rating is inferred from these dimensions.
Send your specificationTAKE A CLOSER LOOK
Understand the components.
Review the product shape, connections, and finish. Send measurements or drawings when matching an existing installation.

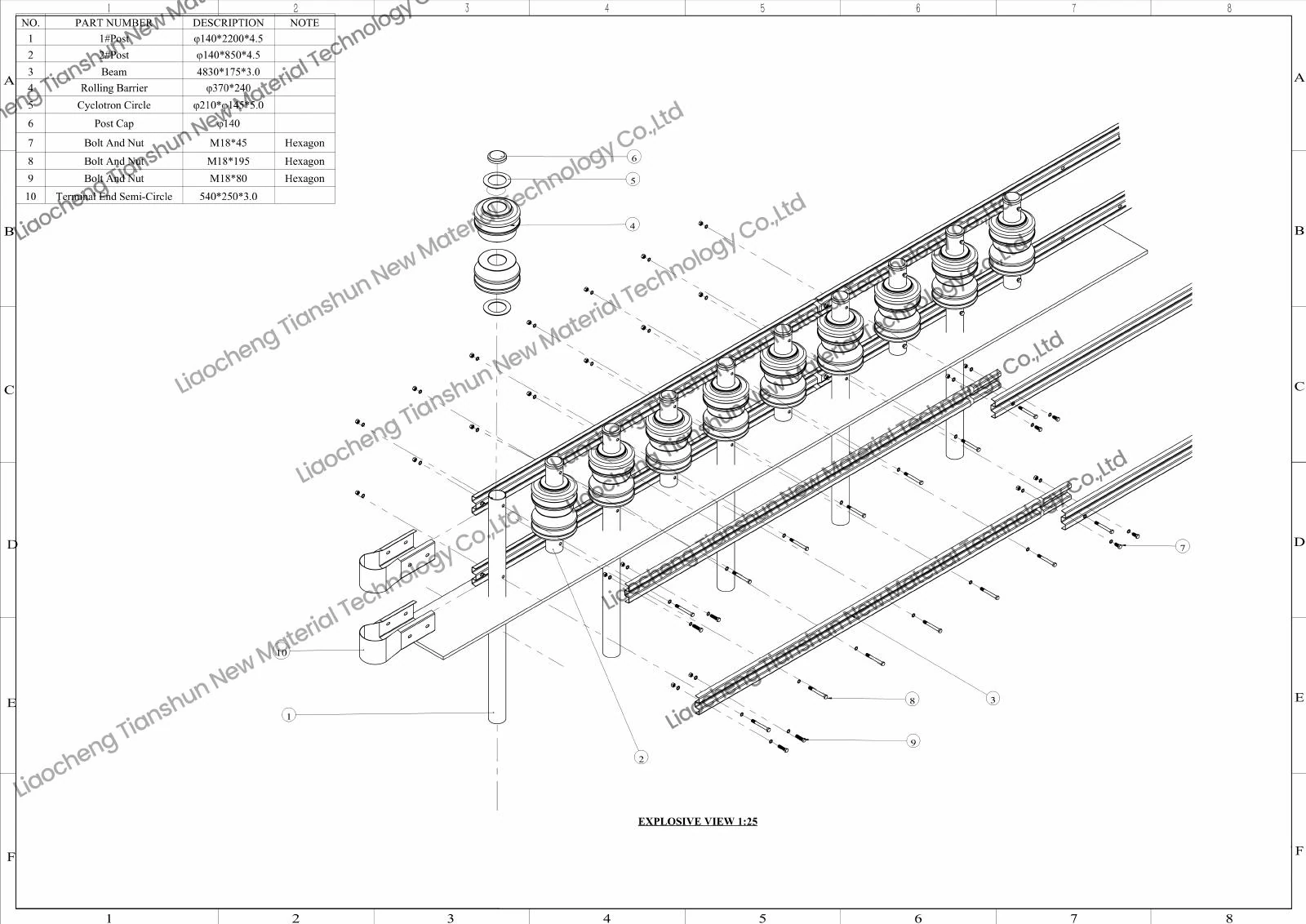

THE COMPLETE ASSEMBLY
Know what’s included.
Define the components, quantities, and interfaces together. The quotation should identify both included and excluded items.
01
Main components
Rollers, posts, and upper and lower beams.
02
Connection hardware
Beam connectors, supports, clips, bolts, and nuts.
03
Request a component listFinishing components
Rings, post caps, terminal sections, and specified reflective elements.
All four pages of the supplied assembly drawing. Select a drawing to enlarge it.

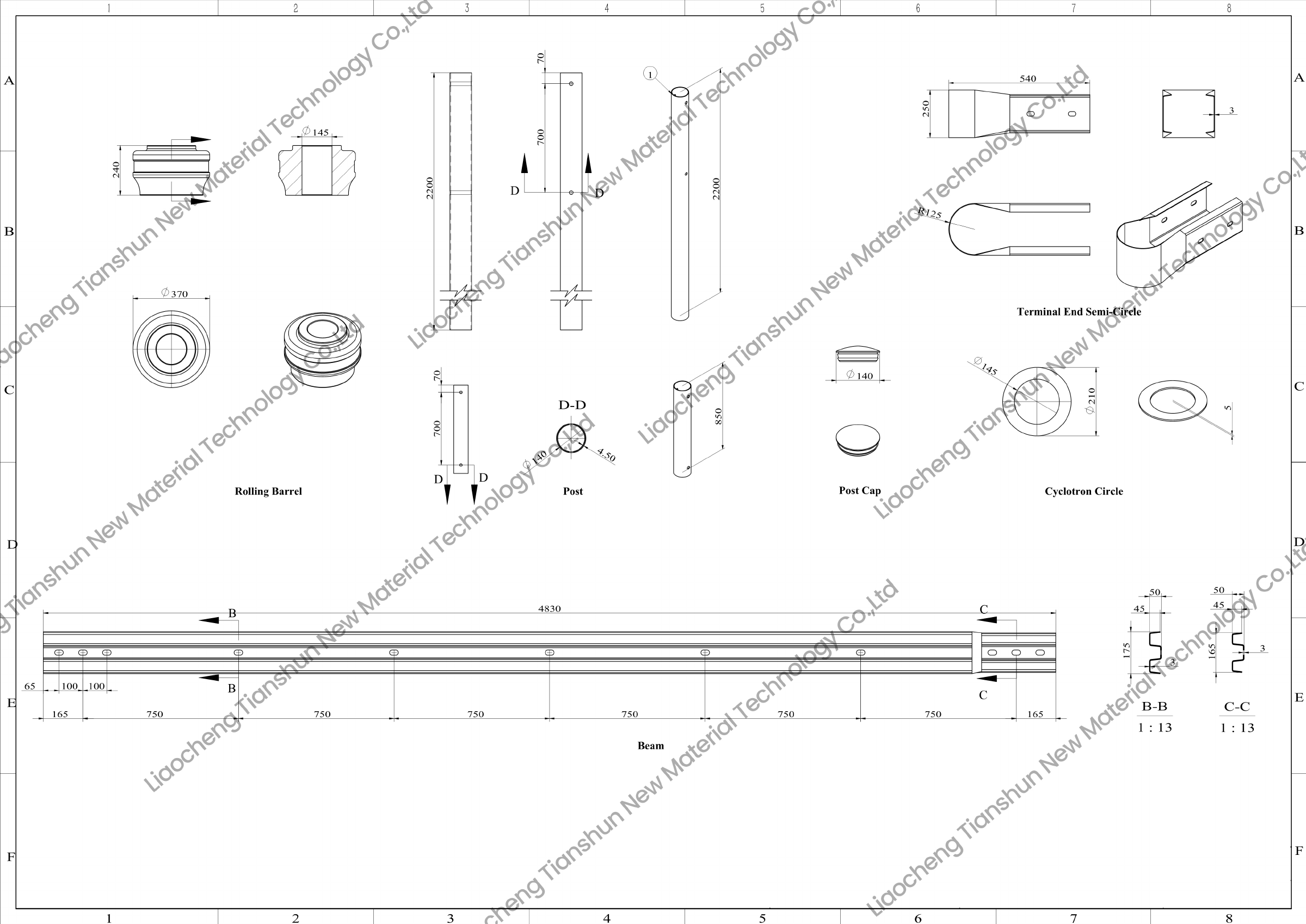

View complete drawing PDFComponent dimensions

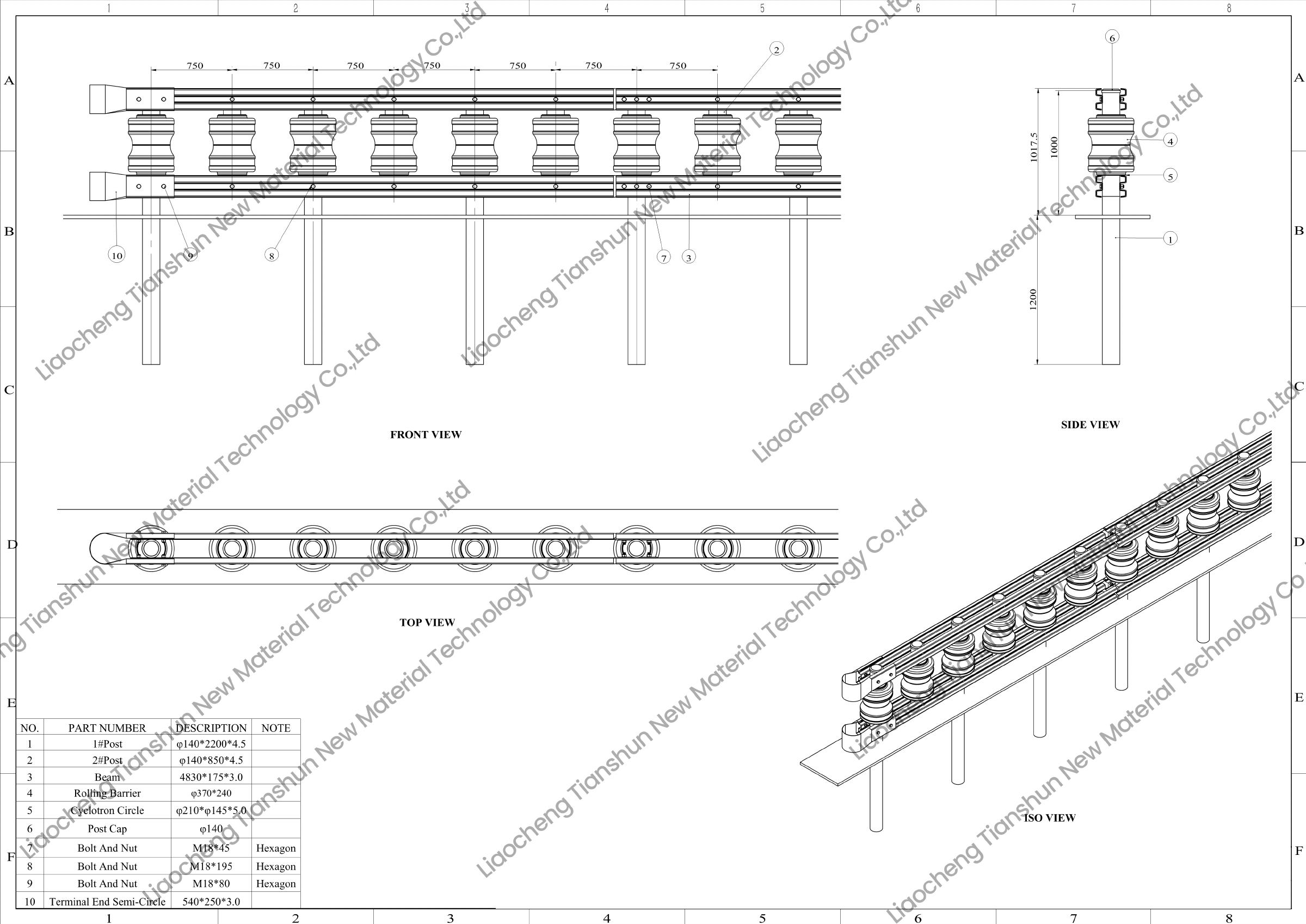

Page 1 of 4Assembly views and parts list

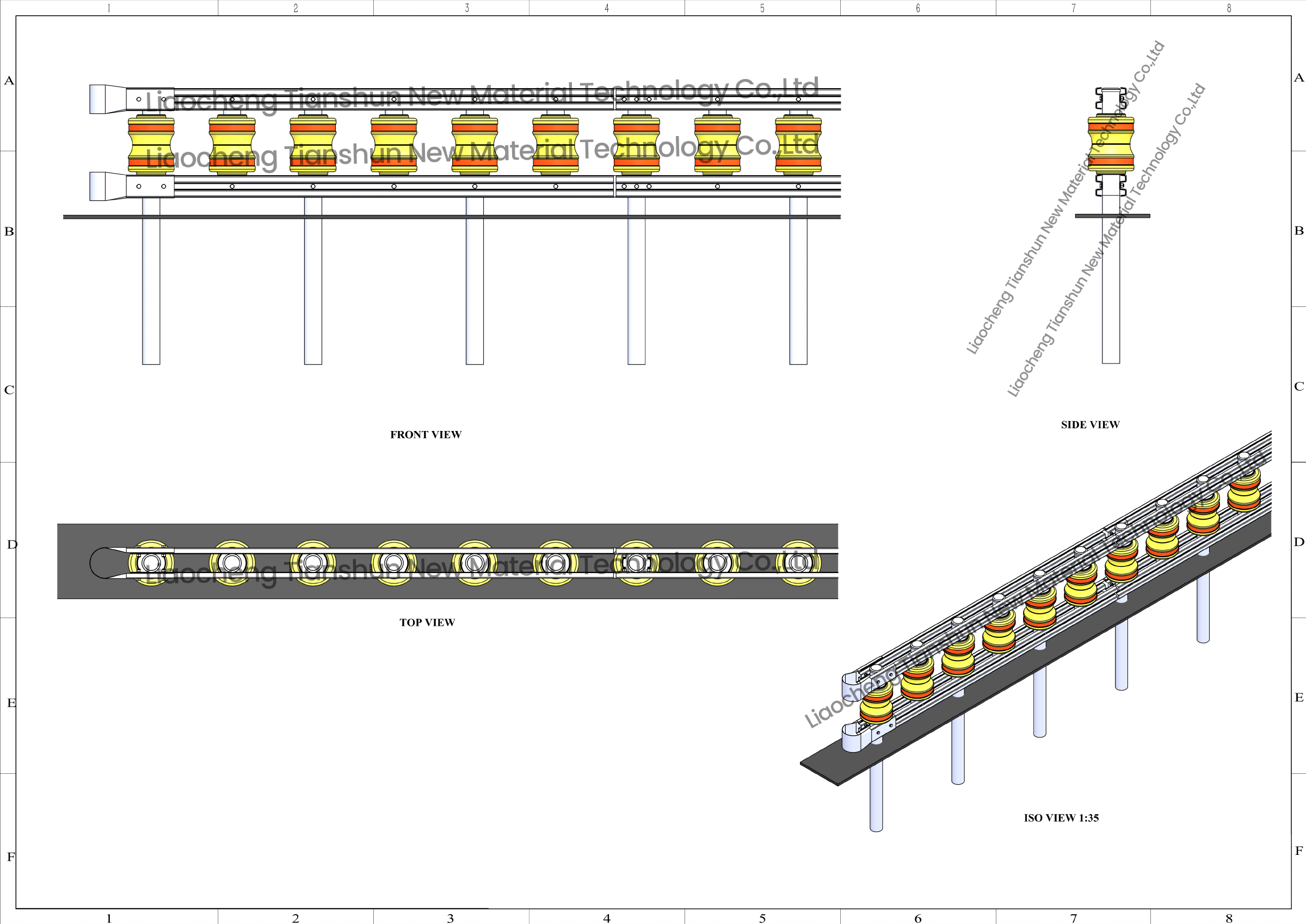

Page 2 of 4Color assembly views

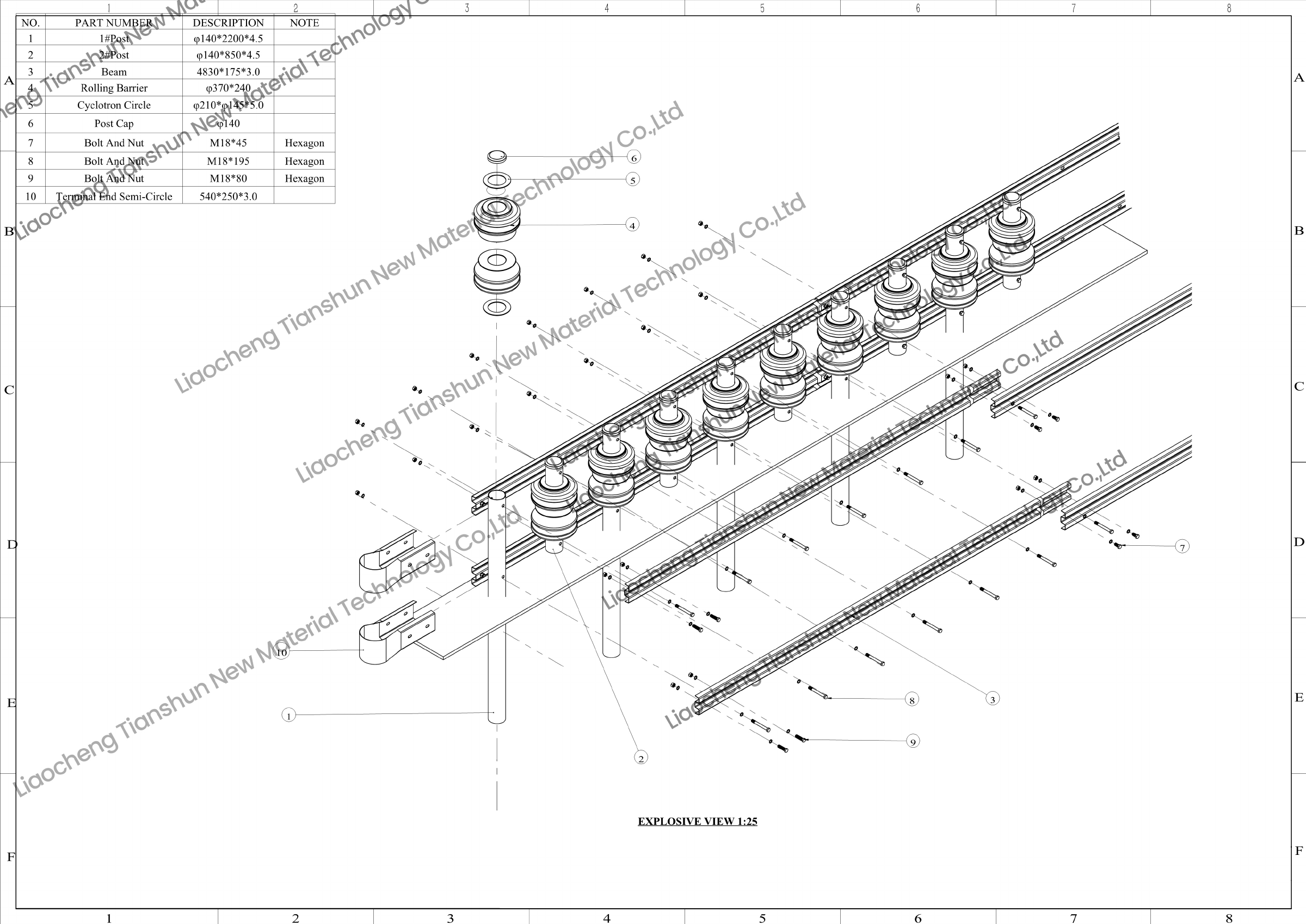

Page 3 of 4Exploded assembly and parts list
Page 4 of 4LAYOUT BEFORE QUANTITIES
Start with the actual
barrier length.
A road’s length and its installed barrier length may differ. Include all installation runs, separate sections, and openings in your inquiry.
Review my component list- 01
Total installed length
Include each side and separate installation run.
- 02
Openings & section ends
Show where the barrier starts, stops, and connects.
- 03
Mounting & configuration
Provide the drawing and foundation details.
DETAILS YOU CAN REVIEW
Make quality requirements clear.
Confirm dimensions, materials, surface finish, and inspection criteria. Specify the records your procurement process needs.

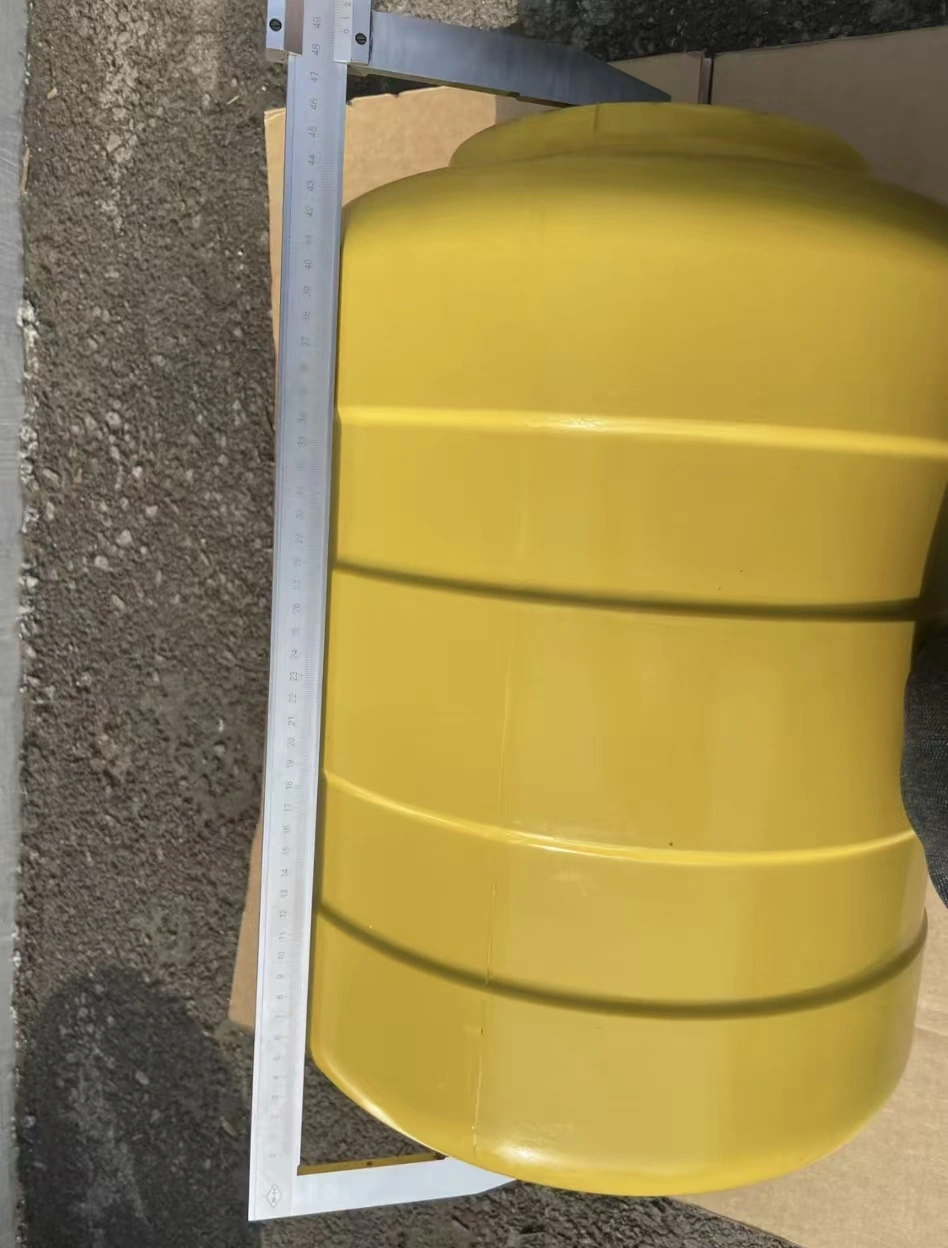

Overall dimensions
Check the roller dimensions against the selected configuration.

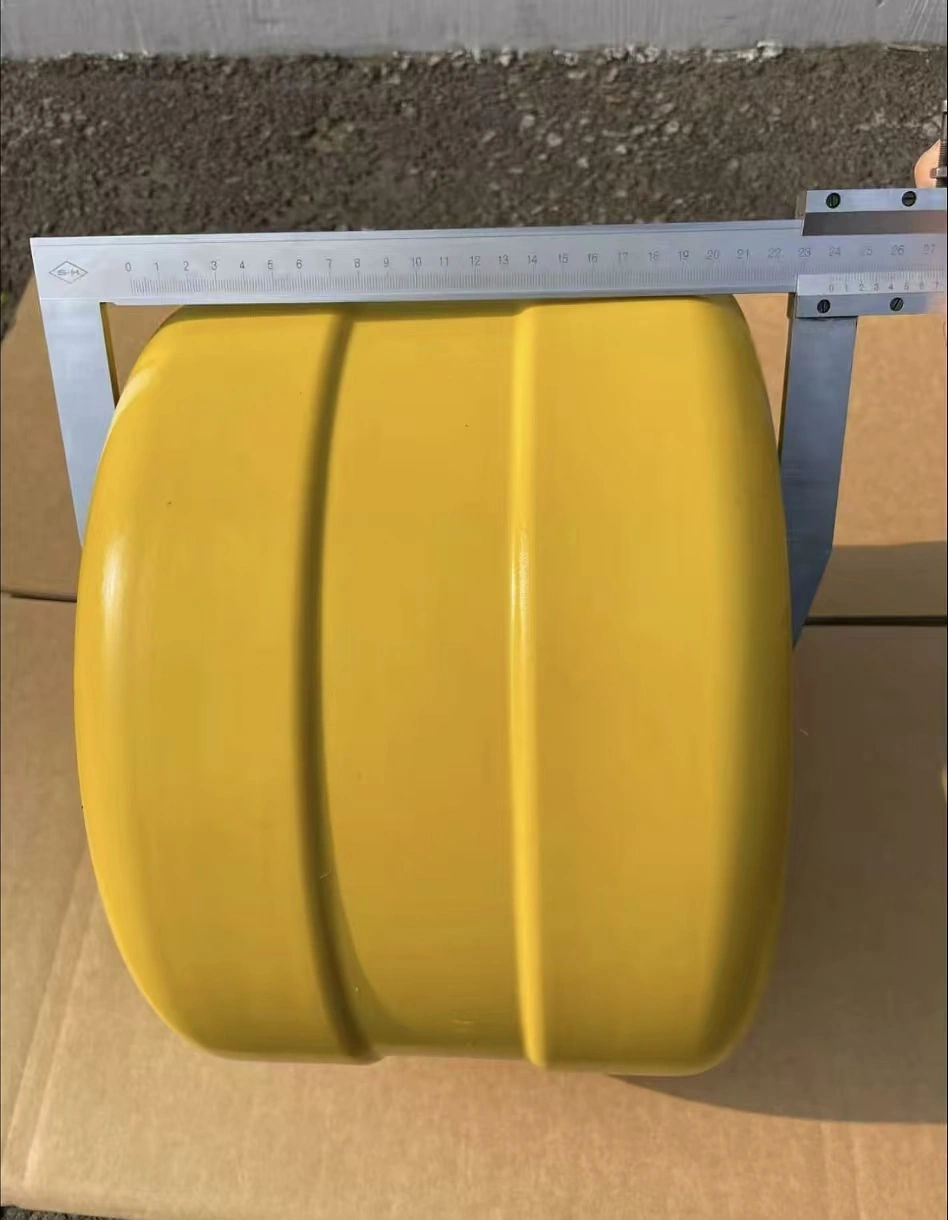

Roller profile & size
Review the roller profile and dimensions before confirming the order.
PRODUCT DOCUMENTATION
Request documents for your configuration.
Share the standard and documentation required for your project. Available documents are reviewed against the proposed product and configuration.
Request applicable documentsRoller barrier
Test report coverThe supplied cover identifies the report. Review the full report and tested configuration before specifying performance.
Highway guardrail
Test report coverThe supplied cover identifies the report. Review the full report and tested configuration before specifying performance.
Bridge guardrail
Test report coverThe supplied cover identifies the report. Review the full report and tested configuration before specifying performance.
ECM Voluntary Technical-Documentation Attestation
Voluntary documentation reviewAttestation 4Q260729.LTNQ076 records a voluntary review of technical documentation; it does not report product verification or replace an EC Declaration of Conformity.
ECM Attestation Annex I
Annex to the attestationAnnex I to 4Q260729.LTNQ076 lists product categories and must be read with the main attestation; it does not identify tested system configurations.
SGS Material and Coating Test Report Excerpt
Supplied page 2 of 3The supplied page 2 of 3 of report SHIN2607015216ML01_EN shows sample test results; sample identity and applicability to an order require confirmation from the full report.
Documents shown are the pages supplied by TIANSHUN. Test-report covers and the SGS excerpt do not replace full reports. Applicability must be checked against the quoted product and configuration.

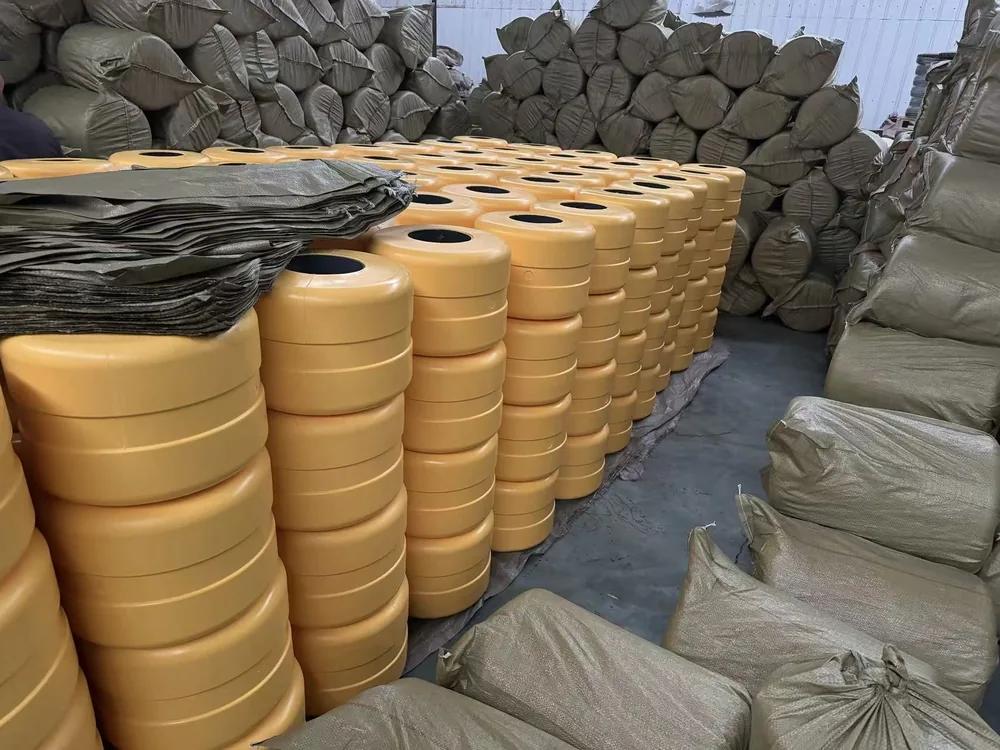

PREPARE FOR SHIPMENT
Packed around your order.
Confirm the quantity, packing list, destination port, and trade term together. Shipping and production schedules are reviewed with the quotation.
BEFORE YOU ORDER
A few useful
answers.
Have a specific requirement?
Let’s review it together.
01What do you need for a roller barrier quotation?
Please provide the total installed barrier length, project country, layout, required configuration, and destination. Add drawings and specified standards if available.
02Can quantities be calculated from road length alone?
Length is a starting point. Final quantities also depend on separate installation runs, openings, end sections, connections, and mounting details. Include both sides if the project uses barriers on both sides of a road.
03Which configuration should I use?
Our materials show more than one configuration. Send the required drawing or specification so the proposed components and documents can be reviewed together.
04Can I buy individual replacement parts?
Send dimensions, material requirements, connection details, and photos or drawings of your existing assembly. Compatibility must be checked.
05Are terminals and fasteners included?
Only when they are listed in your quotation and component list. Confirm the complete supply scope before ordering.
06Can I request test documentation?
Yes. Tell us the required standard and proposed system. Available documents must be reviewed for the specific configuration; a product image or demonstration video is not a test report.
LET’S DISCUSS YOUR PROJECT
Your next project
starts with
a conversation.
Send a specification, a procurement list, or the details you already know. We’ll start there.
